Although these terms are widely used throughout the semiconductor industry, their meanings are not always absolute. In many practical applications, strip, ash, and descum processes are better understood as different process windows, process targets, and process priorities rather than completely separate technologies.

In general, stripper processes are typically associated with thicker photoresist removal and may use relatively higher RF power, higher temperature, and higher gas flow for faster removal rate and higher throughput. Descum processes are usually associated with very thin residue removal, light polymer cleaning, or gentle surface preparation where lower RF power, lower temperature, lower gas flow, better uniformity, lower damage, or better repeatability may become more important. Asher processes are often positioned between these process conditions depending on application requirements.

There is no single “best” plasma strip, asher, or descum condition for all applications. Higher removal rate may improve throughput, but may also reduce process uniformity or repeatability depending on wafer size, pattern density, substrate sensitivity, chamber condition, and process chemistry. Additional gases such as N₂ are sometimes used to increase process rate for selected applications when maximum uniformity is not the primary target.

For this reason, customers should first clearly understand their actual process targets and acceptable process window before comparing plasma systems or configurations. Different applications may prioritize different balances between removal rate, uniformity, repeatability, throughput, wafer sensitivity, RF damage, process temperature, automation level, and long-term process stability. The appropriate plasma equipment configuration should therefore be selected based on actual application requirements rather than only comparing a single specification such as maximum asher rate.

Industry discussions related to plasma damage often involve topics such as ion bombardment, charging effects, surface modification, leakage behavior, interface damage, trap-state generation, repeatability, wafer sensitivity, and long-term process stability depending on device structure and process conditions.

For this reason, many customers now specifically discuss low RF damage, low ion bombardment, downstream plasma, remote plasma, gentle descum, and low-temperature plasma processing when evaluating plasma strip, asher, descum, plasma clean, or selected plasma etch applications.

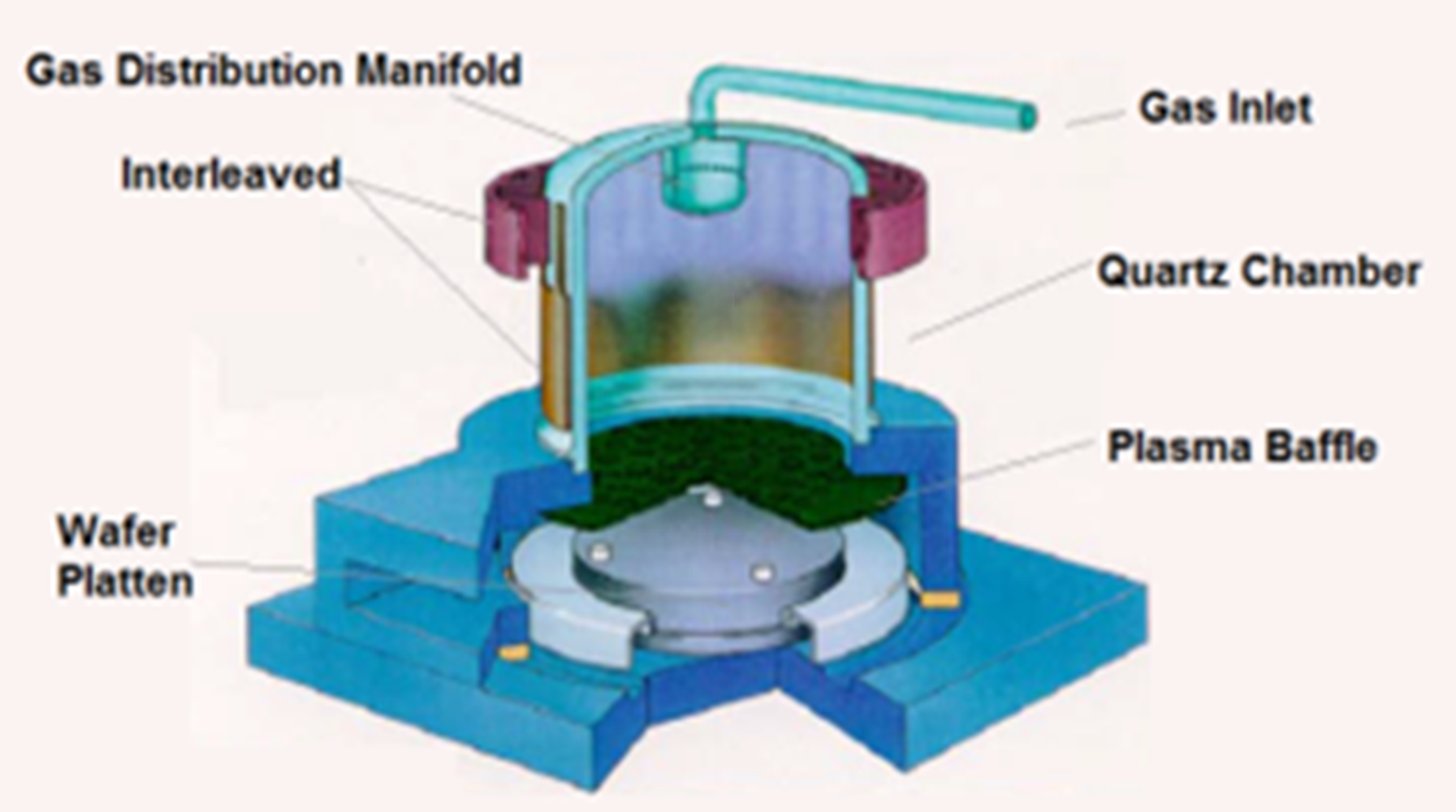

In a downstream plasma architecture, plasma is generated away from the wafer process area. Reactive neutral species flow into the process chamber while direct plasma exposure and direct ion bombardment on the wafer surface are reduced compared with many direct plasma configurations.

This is one reason downstream plasma platforms are often selected for low-damage strip, asher, descum, plasma clean, and selected plasma etch applications where wafer sensitivity, repeatability, surface condition, and long-term process stability may be important.

At the same time, many fabs are now dealing with increasing sustaining pain from legacy plasma platforms. Old PCs may no longer boot reliably. Controllers, PCBs, RF electronics, motion hardware, and OEM-specific modules may already be obsolete or difficult to replace. In some fabs, engineers keep retired systems only for spare parts. One failed PCB or controller can sometimes stop production for days or weeks.

The difficult part is that many fabs cannot simply replace these systems with completely different plasma platforms. The downstream plasma behavior, low RF damage characteristics, wafer handling behavior, process repeatability, and qualified process window may already be tied closely to production yield and long-term fab experience.

As a result, many compound semiconductor fabs today usually follow two practical paths. One path is to purchase rebuilt, reformed, or refurbished plasma platforms using modern controllers, modern software, updated electronics, and currently supportable components while maintaining similar plasma process philosophy and familiar chamber behavior. The second path is to upgrade existing legacy systems using modern control hardware, software, networking capability, RF/control electronics, and industrial computer architecture while preserving the original qualified chamber and process behavior.

This is one reason why modern electronics, modern components, improved wafer transfer, software support, diagnostics, networking capability, and long-term spare-parts support have become increasingly important topics in many compound semiconductor fabs still operating legacy downstream plasma platforms today.
