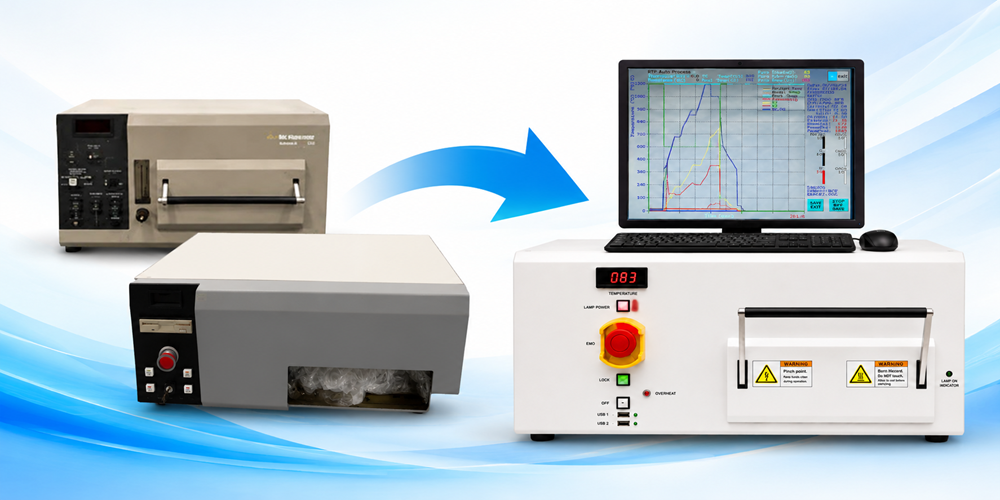

Heatpulse 610 / 410 / 310, MPT 600/800S/XP Upgrade Upgrade Kits
Allwin21 provides upgrade kits for AG Associates Heatpulse 610 / 410 / 310, MPT 600/800S/XP rapid thermal processing systems. The upgrade kits replace obsolete controllers, electronics, PCBs,temperature control modules, and other discontinued components while preserving the original process platform.
Customers must ship their original systems to **Allwin21 Corporation in Morgan Hill, California, USA**, for upgrading.
- Get OEM technical and spare parts supports
- Replace obsolete controller PCBs and electronics
- Improve system reliability and maintainability
- Add modern GUI, recipe management, and data storage
- Simplify troubleshooting and calibration
- Reduce downtime caused by obsolete components
- Extend the life of production-proven process platforms
- Add optional GEM/SECS II and advanced EOP functions
Allwin21 provides comprehensive hardware and software upgrades for legacy AG Associates Heatpulse 610, 410, 310, and MPT 600/800S/XP Rapid Thermal Processing (RTP) systems. The upgrade replaces obsolete electronics, controls, and computer hardware with modern AccuThermo technology while retaining the original process chamber assembly.
Computer and Software Upgrade
The upgrade includes a new Pentium®-class computer board, a 17-inch LCD monitor, and Allwin21’s proprietary AW Software package. The software features a user-friendly graphical user interface (GUI) with advanced temperature control and real-time graphical plots, enhanced pyrometer calibration, process data review, system diagnostics, and built-in online help.
Hardware and Control System Upgrade
The original system chassis is replaced with a new AccuThermo chassis featuring integrated wiring, cooling fans, and a power contactor. All obsolete printed circuit boards (PCBs) are replaced with new control electronics. The upgraded system includes a six-gas-line configuration with one 10 SLM N2 mass flow controller (MFC).
Process Chamber Transfer and System Testing
The original process chamber assembly is carefully transferred into the new chassis, preserving the existing chamber configuration. After integration, Allwin21 performs comprehensive system testing, including temperature control, gas flow, safety interlocks, and overall system operation, to verify proper functionality and reliable performance before shipment.
| Comparing Item | AW610M | Upgraded 610/410/310/600/800S/XP | Original Upgraded 610/410/310/600/800S/XP |
|---|---|---|---|
| Controller | New embedded PC | New embedded PC | OLD Obsolete Controller |
| Monitor | 17″ LCD | 17″ LCD | Old obsolete display |
| Gas lines | New, MFCs | New, MFCs or Used MFCs | Gas flow meter or Used MFCs |
| Temperature Controller | Allwin21 new advanced technology | Allwin21 new advanced technology | OLD technology |
| User Interface | GUI | GUI | Text or old GUI |
| Data Storage | Store in Hard Disk | Store in Hard Disk | Old Storage technology |
| Recipe Edit | Easy to edit with GUI | Easy to edit with GUI | TBD |
| Recipes | Unlimited | Unlimited | TBD |
| Online Help | Yes | Yes | None |
| Gas Calibration | Easy to do with GUI | Easy to do with GUI | Not Easy |
| Diagnostic Function | More functions and AD/DA, I/O hardware exposed for easier maintenance and trouble shooting | More functions and I/O hardware exposed for easier maintenance and trouble shooting | Limited |
| Powersum Function | Yes | Yes | No |
| Temperature and/or lamp intensity limits | Yes | Yes | No |
| Lamp Control Zones | 6 | 6 | 2 |
| Power requirements | 3 phase, 50A, 50/60Hz | 3 phase, 50A, 50/60Hz | Single Phase, 100A, 50/60HZ or 3 phase, 50A, 50/60Hz |
| A/D Precision | 14-16bits | 14-16bits | 12bits |
| GEM/SEC II function | Optional | Optional | No |
| Alarm Light Tower | Yes-Optional | Yes-Optional | No |
| Frame | New | New | Used |
| O Rings | New | Used | Used |
| Quartz Chamber | New | Used | Used |
| Cables | New | Used | Used |
| Wires | New | Used | Used |
| Other Components | New | Used | Used |
| Stability | Much Better | Better | Limited |
| More configuration options | Yes | Yes | No |
| OEM Support | Yes | Yes | No |
Request an Upgrade Kit Review
Please provide the following equipment information and upgrade requirements. Based on your equipment condition, upgrade goals, and future plans, Allwin21 will review and recommend a suitable upgrade or retrofit solution.
